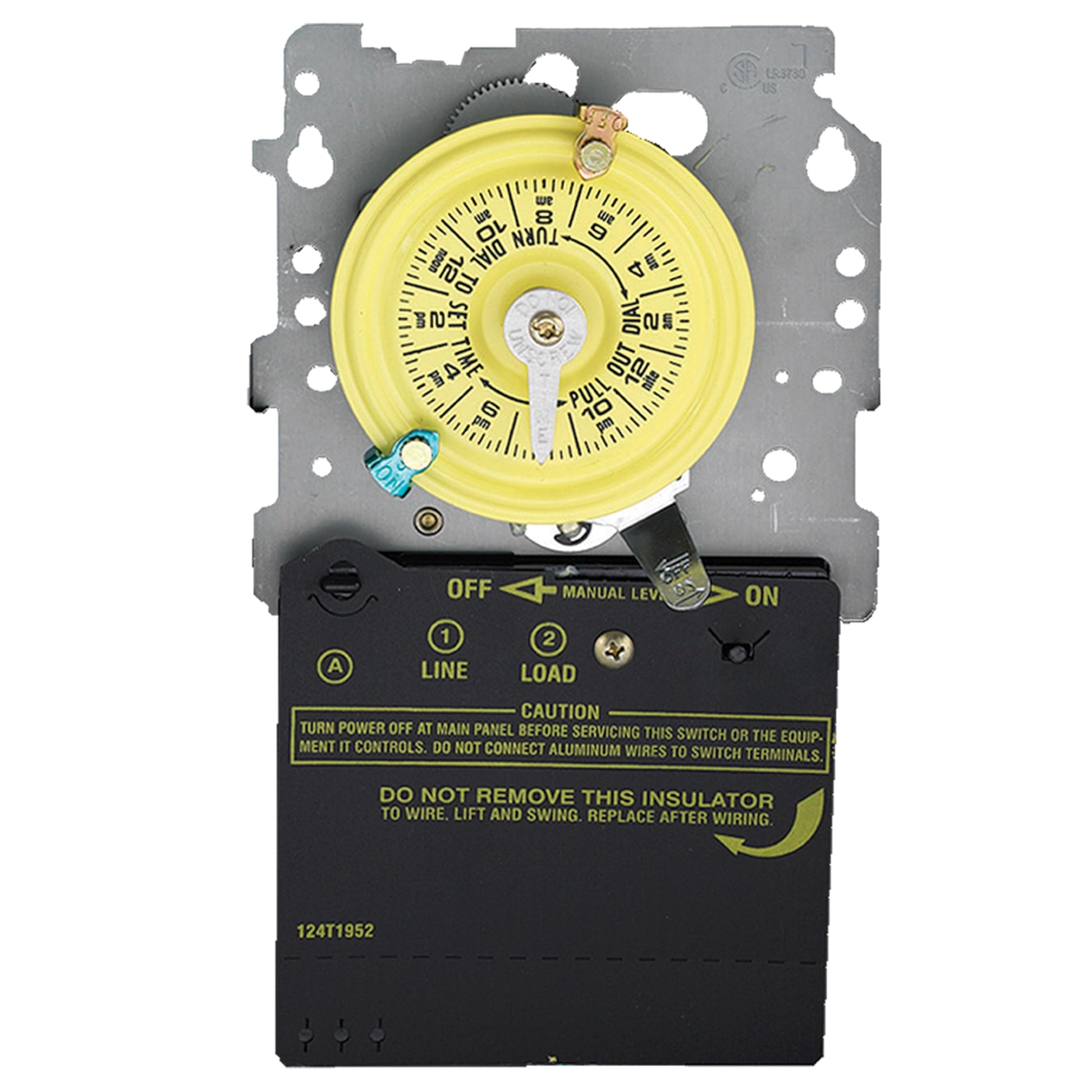

Intermatic T101M 24-Hour Mechanical Timer (Mechanism Only) - 120V SPST, Heavy-Duty, Manual Override, 40 Amp - Ideal for Lights, Pumps, Fans, and HVAC Systems

Brand: Intermatic

Color: Gray

Features:

• SINGLE POLE, SINGLE THROW (SPST) – Handles 40 Amps at 120V for high-load applications including water heaters, pool pumps, signage, exhaust fans, and HVAC equipment—built for long-lasting, consistent performance.
• 24-HOUR ANALOG TIME CONTROL – Reliable mechanical timer provides up to 12 ON/OFF events every 24 hours with 1-hour minimum intervals, ideal for automating daily schedules of lights, pumps, heaters, and ventilation systems.
• MECHANISM-ONLY FLEXIBILITY – Designed to fit into existing or new Intermatic enclosures, this modular timer is perfect for retrofits, replacements, or customized indoor timer installations.
• INCLUDES ON/OFF TRIPPERS – Comes ready to program with one ON and one OFF tripper included; additional trippers can be added to support up to 12 programmable operations per day.
• BUILT FOR TOUGH LOADS – Industry-leading motor load ratings and compatibility with LED, HID, resistive, inductive, and ballast loads up to 2 HP; certified by UL and CSA for safe use in residential and commercial settings.

Binding: Lawn & Patio

model number: T101M

Part Number: T101M

Details: Product Description

If you are replacing an existing T101 or T101R control you do not need to buy the whole unit, this mechanism fits into either enclosure. For any units that are SPST (Single Pole Single Throw) there will only be a total of 3 wiring terminals that will be used. There is a Neutral, Line, and Load terminal. The 2nd Line and Load terminals that may be seen on the insulator cover will not be used and will not be on the actual unit. Mechanism only.

From the Manufacturer

If you are replacing an existing T101 or T101R control you do not need to buy the whole unit – this mechanism fits into either enclosure.
For any units that are SPST (Single Pole Single Throw) there will only be a total of 3 wiring terminals that will be used. There is a Neutral, Line, and Load terminal. The 2nd Line and Load terminals that may be seen on the insulator cover will not be used and will not be on the actual unit. Mechanism only. One year warranty.

EAN: 0080013000112

Package Dimensions: 6.2 x 5.3 x 3.2 inches
